Guitar / Bass
Most red-blooded American guitar players have a favorite amp tone they dream about. It may be a 50s twang, a 60s groove or the edge of the 90s. Whatever the sound, from the bayou to the blues, the Patriot series has a speaker that can deliver it. From thumping bass, mellow mid-tones or soaring highs, Patriot speakers offer different balances of that spectrum with a wide selection of models. Pick your sound, and then pick your speaker.
Model Name | Image | Size | Voice Coil Diam. | Magnet Wt. | Power Rating | Sensitivity | Spec Sheet |
---|---|---|---|---|---|---|---|
620H | ![]() | 6" | 1", 25 MM | 15 OZ. | 20W | 94.6 dB | ![]() |
820H | ![]() | 8" | 1", 25 MM | 15 OZ. | 20W | 96.1 dB | ![]() |

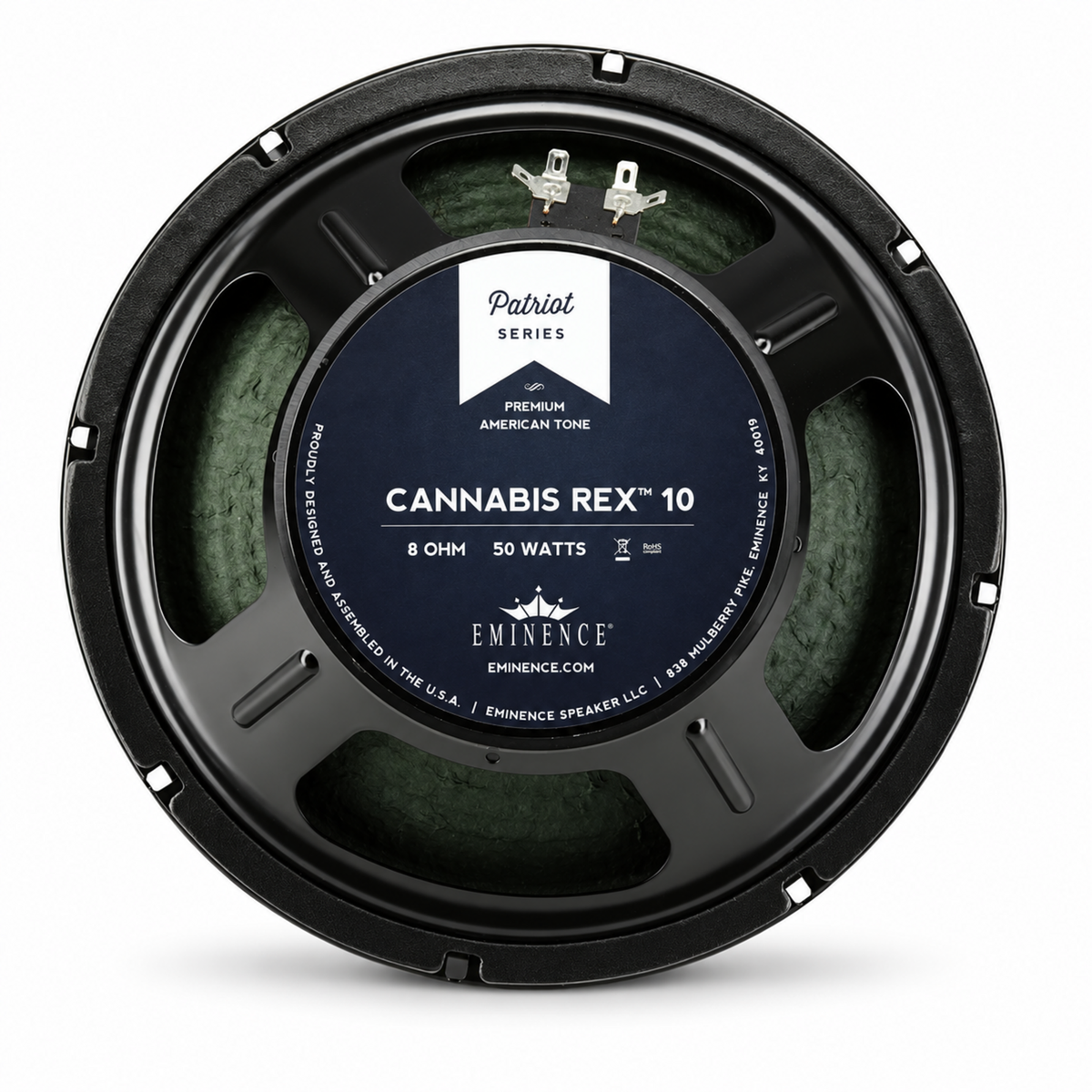

CANNABIS REX 10 | ![]() | 10" | 1.75", 44 MM | 38 OZ. | 50W | 99.3 dB | ![]() |

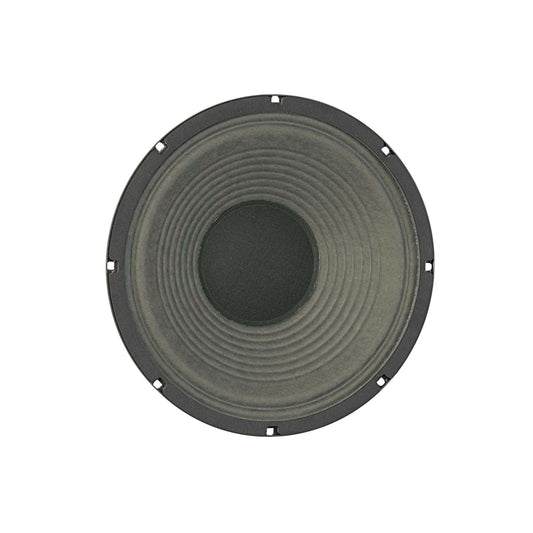

LIL' BUDDY™ | ![]() | 10" | 1.75", 44 MM | 30 OZ. | 50W | 98.8 dB | ![]() |

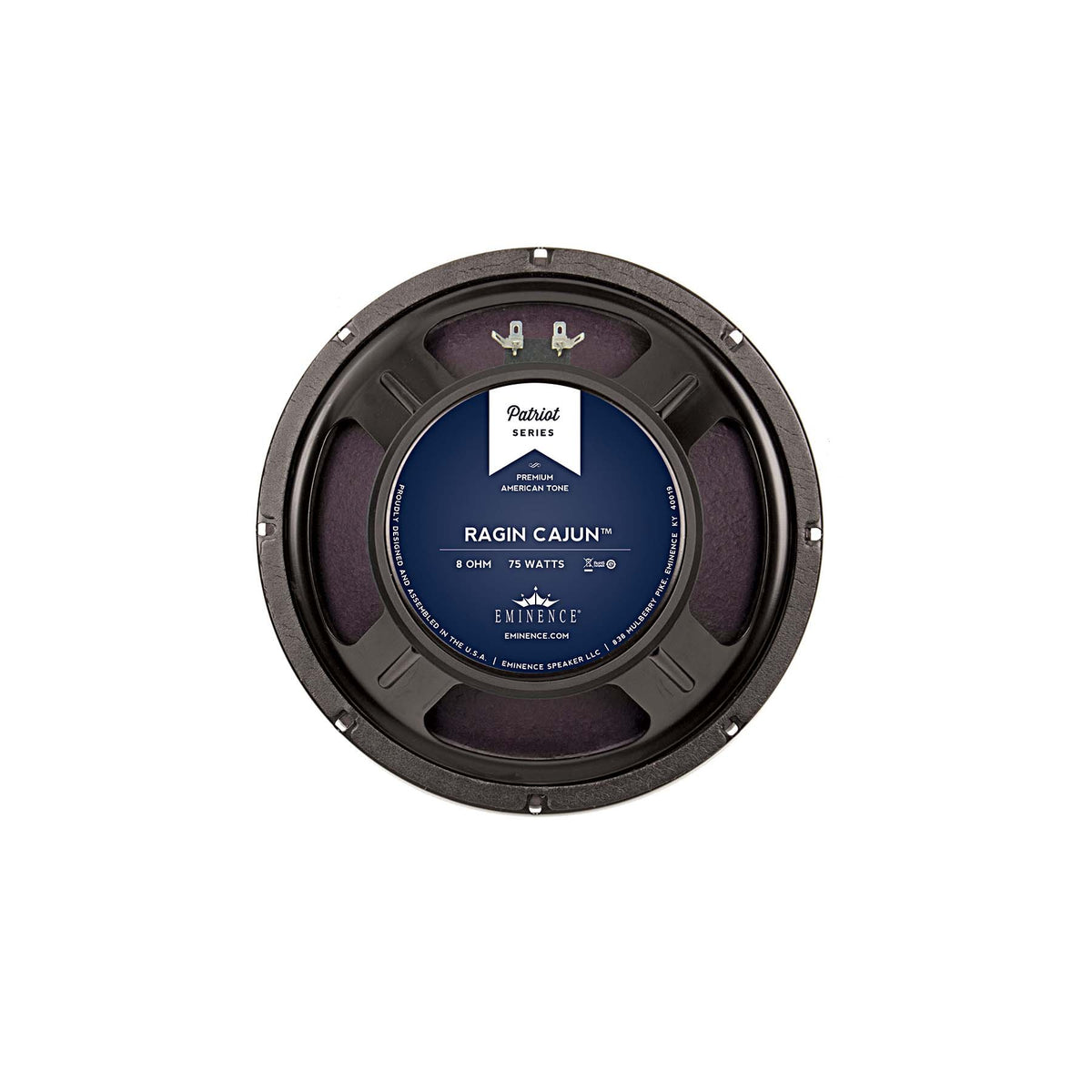

RAGIN CAJUN™ | ![]() | 10" | 1.5", 38 MM | 30 OZ. | 75W | 100.5 dB | ![]() |
THE COPPERHEAD™ | ![]() | 10" | 1.5", 38 MM | 20 OZ. | 75W | 98.8 dB | ![]() |
CANNABIS REX™ | ![]() | 12" | 1.75", 44 MM | 38 OZ. | 50W | 101.8 dB | ![]() |
CANNABIS REX™ 16 | ![]() | 12" | 1.75", 44 MM | 38 OZ. | 50W | 101.8 dB | ![]() |
GUIT-FIDDLE | ![]() | 12" | 2", 51 MM | 38 OZ. | 100W | 100.1 dB | ![]() |
LIL' TEXAS™ | ![]() | 12" | 2", 51 MM | 4 OZ. | 125W | 101.2 dB | ![]() |

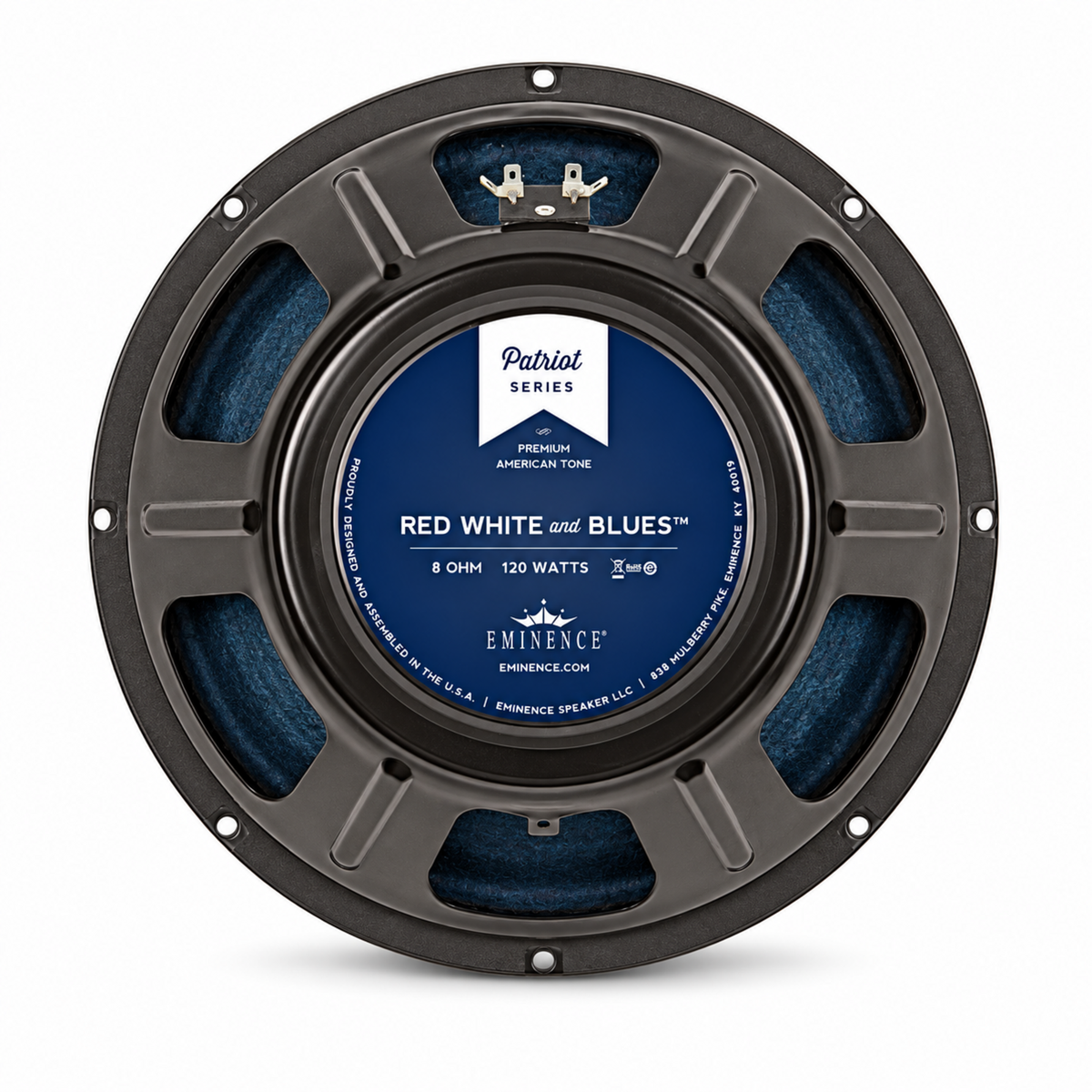

RED WHITE AND BLUES™ | ![]() | 12" | 1.75", 44 MM | 38 OZ. | 120W | 101 dB | ![]() |
SWAMP THANG™ | ![]() | 12" | 2", 51 MM | 59 OZ. | 150W | 102 dB | ![]() |
SWAMP THANG™ 16 | ![]() | 12" | 2", 51 MM | 59 OZ. | 150W | 102.3 dB | ![]() |
TEXAS HEAT™ | ![]() | 12" | 2", 51 MM | 38 OZ. | 150W | 99.4 dB | ![]() |

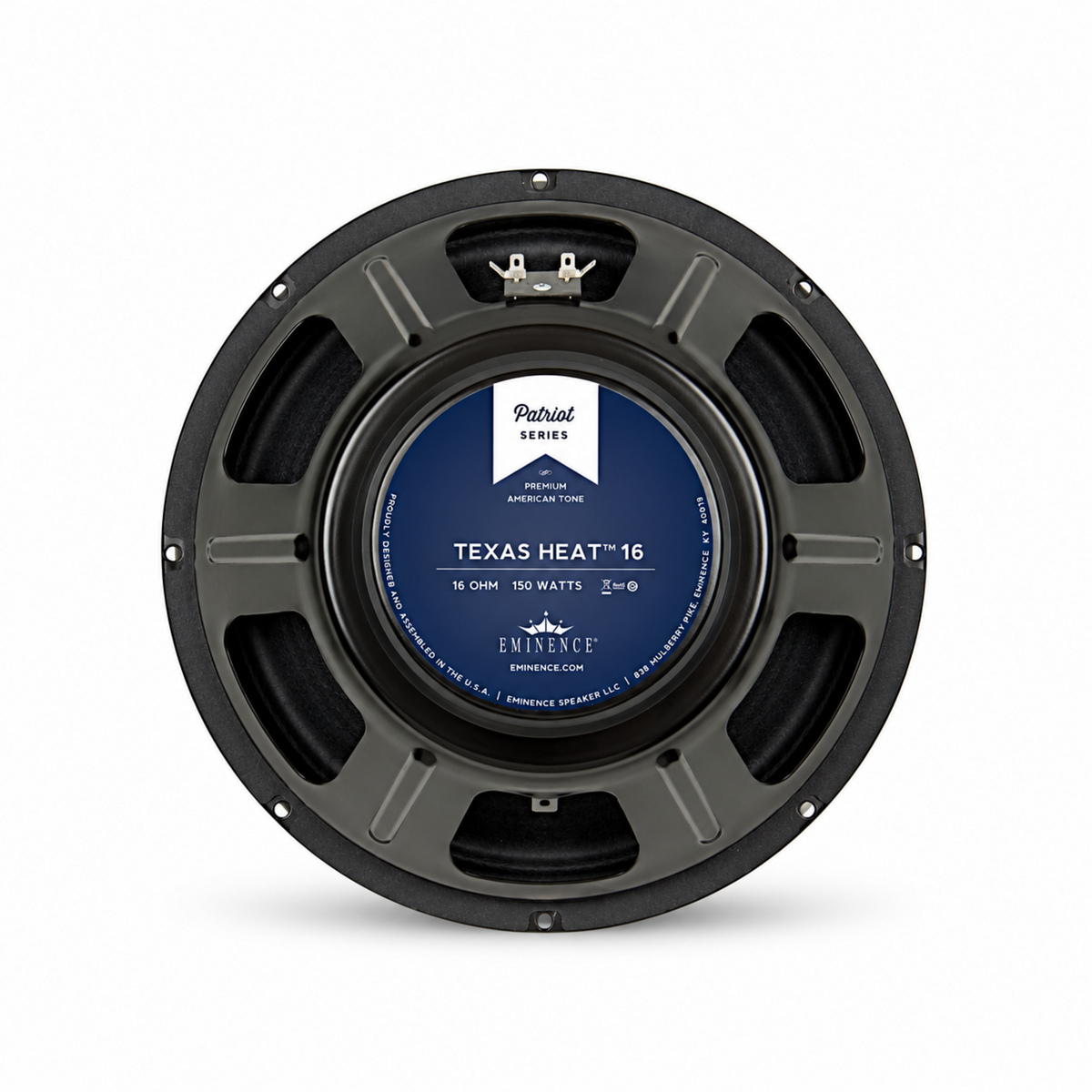

TEXAS HEAT™ 16 | ![]() | 12" | 2", 51 MM | 38 OZ. | 150W | 100.2 dB | ![]() |
TEXAS HEAT™ 4 | ![]() | 12" | 2", 51 MM | 38 OZ. | 150W | 99 dB | ![]() |
EPS-15C | ![]() | 15" | 3", 76 MM | 11 OZ. | 300W | 100.2 dB | ![]() |
