LEGEND BP102-4

Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi driver designs.

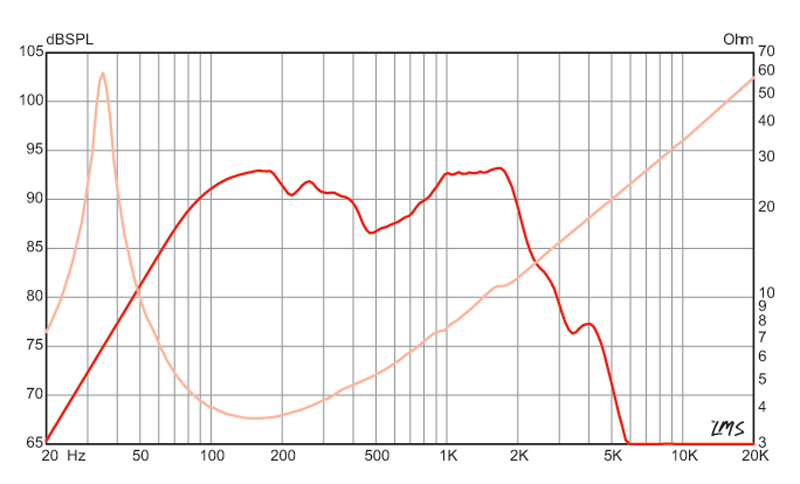

response graph
Suggested Retail  $89.99
Your Price  $84.99

For continental USA shipments only.

  • Free Shipping
  • Free Tech Support
  • 7-Year Warranty*
*Warranty policy may vary outside the USA.
This table charts the specifications for the LEGEND BP102-4 speaker
Speaker Detail
Specification
Nominal Basket Diameter10", 254 mm
Nominal Impedance*4 Ω
Power Rating**
Watts200 W
Music Program400 W
Resonance35 Hz
Usable Frequency Range40 Hz - 2 kHz
Sensitivity***90.5 dB
Magnet Weight38 oz.
Gap Height0.31", 7.9 mm
Voice Coil Diameter2", 51 mm
Thiele & Small Parameters
Resonant Frequency (fs)35 Hz
DC Resistance (Re)2.7 Ω
Coil Inductance (Le)0.68m H
Mechanical Q (Qms)10.61
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)103.8 liters / 3.67 cu.ft.
Peak Diaphragm Displacement Volume (Vd)213 cc
Mechanical Compliance of Suspension (Cms)0.63 mm/N
BL Product (BL)7.1 T-M
Diaphragm Mass Inc. Airload (MMs)34 grams
Efficiency Bandwidth Product (EBP)87
Maximum Linear Excursion (Xmax)6.2 mm
Surface Area of Cone (Sd)344.9 cm2
Maximum Mechanical Limit (Xlim)10 mm
Mounting Information
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced0.041 cu.ft. / 1.17 liters
Overall Diameter10.08", 256 mm
Baffle Hole Diameter9.18", 233.2 mm
Front Sealing GasketYes
Rear Sealing GasketYes
Mounting Holes Diameter0.25", 6.4mm
Mounting Holes B.C.D.9.66", 245.4mm
Depth4.25", 108 mm
Net Weight8.9 lbs, 4.04 kg
Shipping Weight9.1 lbs, 4.13 kgs
Materials of Construction
Coil ConstructionCopper voice coil
Coil FormerPolyimide former
Magnet CompositionFerrite magnet
Core DetailsNon-vented core

Basket MaterialsPressed steel basket
Cone CompositionPaper cone
Cone Edge CompositionCloth cone edge
Dust Cap CompositionZurette dust cap
Hide
Footnotes

* Please consult www.eminence.com for specifications of models with alternative impedances.

** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, nontemperature-controlled environment.

*** The average output across the usable frequency range when applying 1W/1m into the nominal impedance. ie: 2.83 V /8 ohms, 4 V /16 ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).

**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR™ CX 2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.

***** Multiple units exceeded published rating evaluated under AES 500 and AES 800 noise sources and test standards while mounted on Eminence's TI-2000 horn in a nontemperature-controlled environment.

****** The average on axis output across the entire usable frequency range when applying 1W/1m into the nominal impedance while mounted on a Community SH 494 horn measured with: LMS (software calibrated) using a 0.25" [6.4mm] supplied microphone mounted 1m from horn mouth, Hafler P1500 Trans-Nova amplifier, 2700 cu.ft. chamber w/fiberglass on all six surfaces (three with custom made wedges). Plane-wave tube response and impedance curves measured with LMS on a 0.75" [19.1mm] diameter tube with adapter to allow for smooth transition to throat diameter and 1W/1m into nominal impedance. Prices and Specifications Subject to Change Without Notice.
