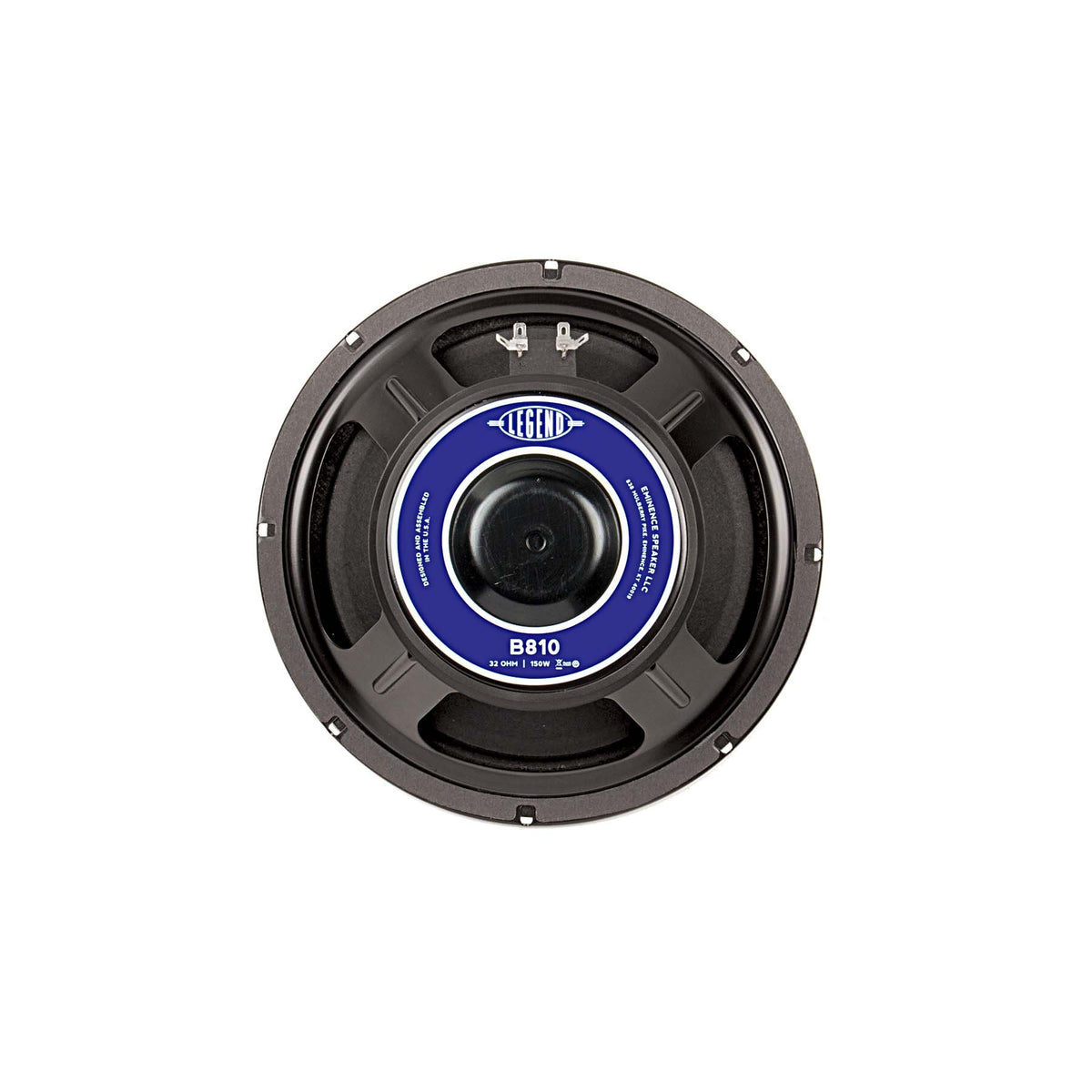

A 32 ohm, 10 bass guitar speaker offering classic sound with modern features. A perfect replacement for your 8x10 cabinet.\"
|Nominal Basket Diameter||10", 254 mm|
|Nominal Impedance*||32 Ω|
|Music Program||300 W|
|Usable Frequency Range||49 Hz - 5.1 kHz|
|Magnet Weight||30 oz.|
|Gap Height||0.312", 7.9 mm|
|Voice Coil Diameter||2", 51 mm|
|Thiele & Small Parameters|
|Resonant Frequency (fs)||52 Hz|
|DC Resistance (Re)||27.5 Ω|
|Coil Inductance (Le)||2.72m H|
|Mechanical Q (Qms)||13.91|
|Electromagnetic Q (Qes)||0.68|
|Total Q (Qts)||0.65|
|Compliance Equivalent Volume (Vas)||66.4 liters / 2.34 cu.ft.|
|Peak Diaphragm Displacement Volume (Vd)||165.2 cc|
|Mechanical Compliance of Suspension (Cms)||0.39 mm/N|
|BL Product (BL)||17.7 T-M|
|Diaphragm Mass Inc. Airload (MMs)||24 grams|
|Efficiency Bandwidth Product (EBP)||77|
|Maximum Linear Excursion (Xmax)||4.7 mm|
|Surface Area of Cone (Sd)||350.1 cm2|
|Maximum Mechanical Limit (Xlim)||9.5 mm|
|Recommended Enclosure Volume|
|Driver Volume Displaced||0.039 cu.ft. / 1.1 liters|
|Overall Diameter||10.11", 256.8 mm|
|Baffle Hole Diameter||9.13", 231.9 mm|
|Front Sealing Gasket||Yes|
|Rear Sealing Gasket||Yes|
|Mounting Holes Diameter||0.23", 5.8mm|
|Mounting Holes B.C.D.||9.6", 243.8mm|

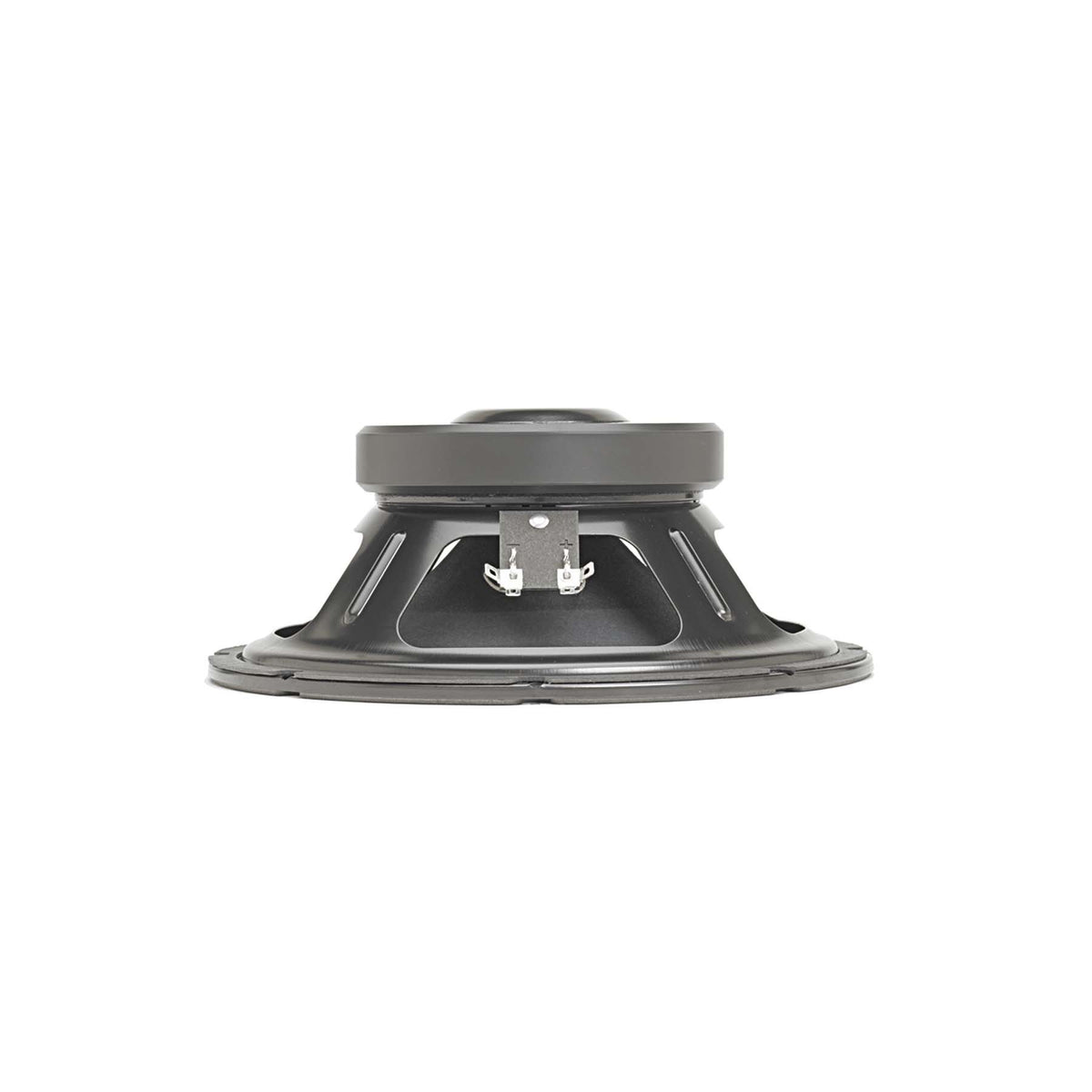

|Depth||4.08", 103.6 mm|
|Net Weight||6.7 lbs, 3.04 kg|
|Shipping Weight||7.9 lbs, 3.58 kgs|
|Materials of Construction|
|Coil Construction||Copper voice coil|
|Coil Former||Kapton former|
|Magnet Composition||Ferrite magnet|
|Basket Materials||Pressed steel basket|

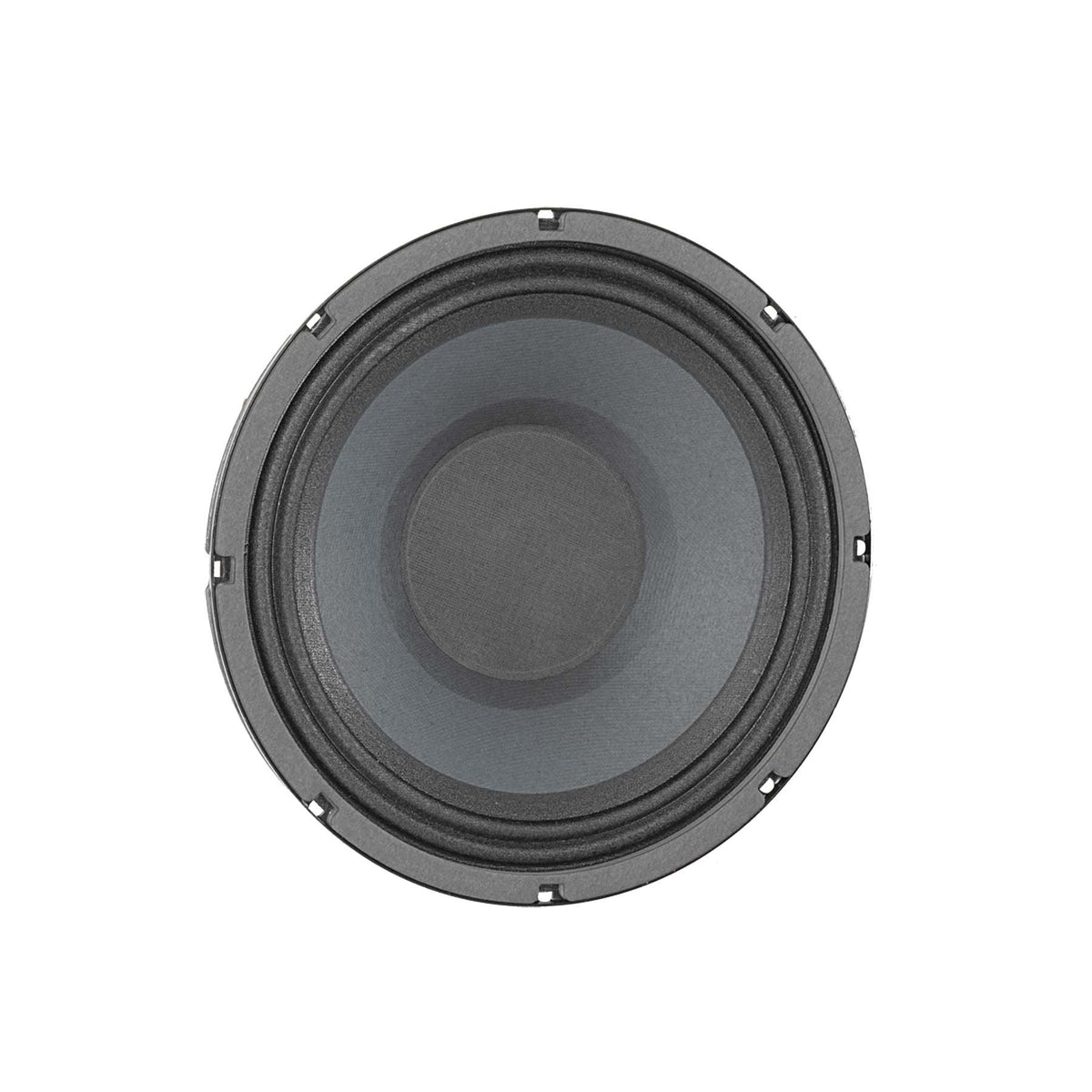

|Cone Composition||Paper cone|
|Cone Edge Composition||Cloth cone edge|
|Dust Cap Composition||Zurette dust cap|
* Please consult www.eminence.com for specifications of models with alternative impedances.
** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, nontemperature-controlled environment.

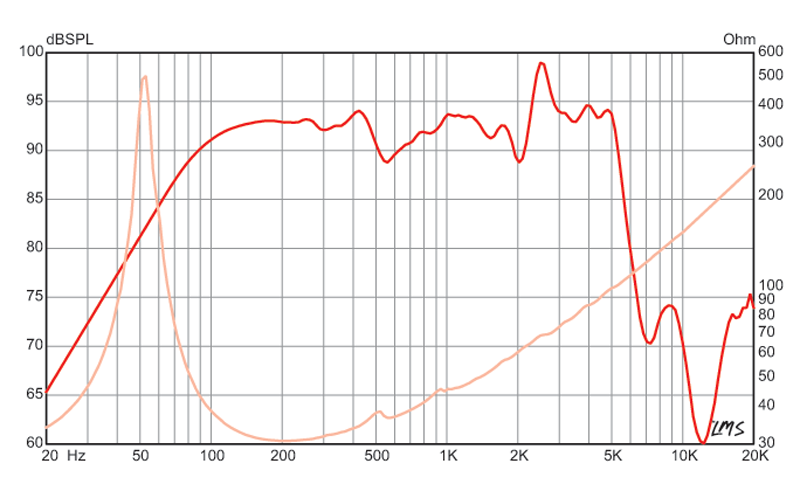

*** The average output across the usable frequency range when applying 1W/1m into the nominal impedance. ie: 2.83 V /8 ohms, 4 V /16 ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).
**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR™ CX 2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
***** Multiple units exceeded published rating evaluated under AES 500 and AES 800 noise sources and test standards while mounted on Eminence's TI-2000 horn in a nontemperature-controlled environment.
****** The average on axis output across the entire usable frequency range when applying 1W/1m into the nominal impedance while mounted on a Community SH 494 horn measured with: LMS (software calibrated) using a 0.25" [6.4mm] supplied microphone mounted 1m from horn mouth, Hafler P1500 Trans-Nova amplifier, 2700 cu.ft. chamber w/fiberglass on all six surfaces (three with custom made wedges). Plane-wave tube response and impedance curves measured with LMS on a 0.75" [19.1mm] diameter tube with adapter to allow for smooth transition to throat diameter and 1W/1m into nominal impedance. Prices and Specifications Subject to Change Without Notice.
