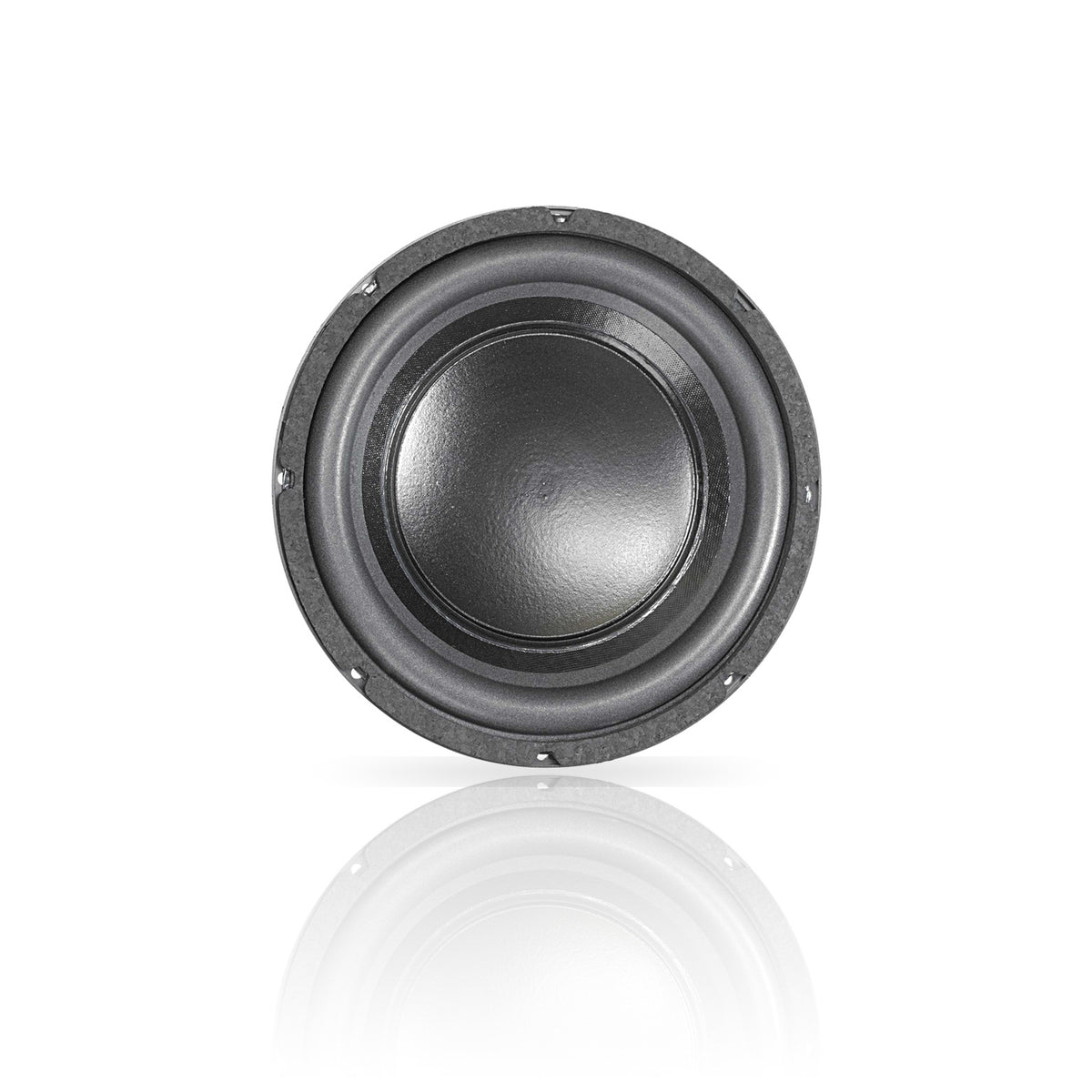

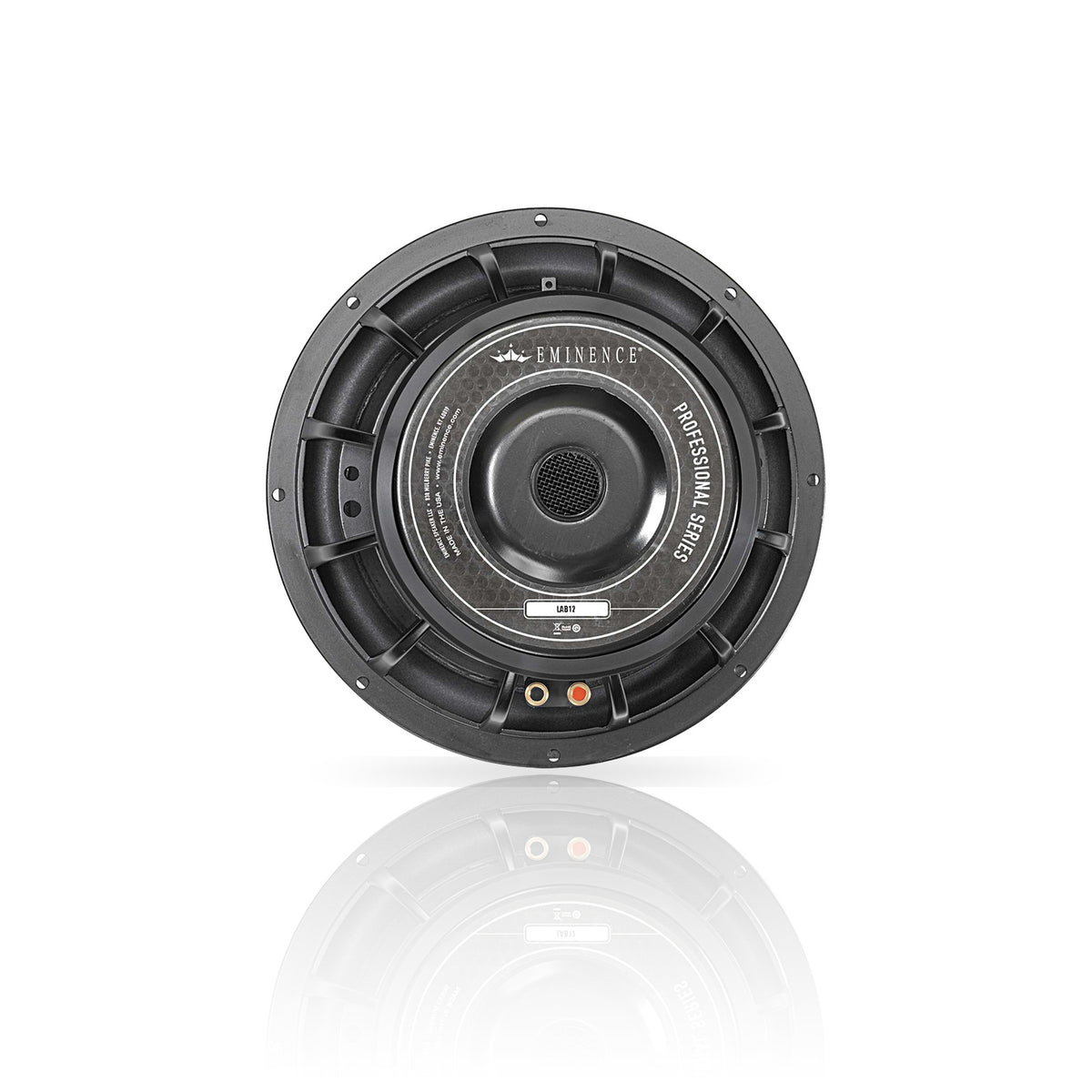

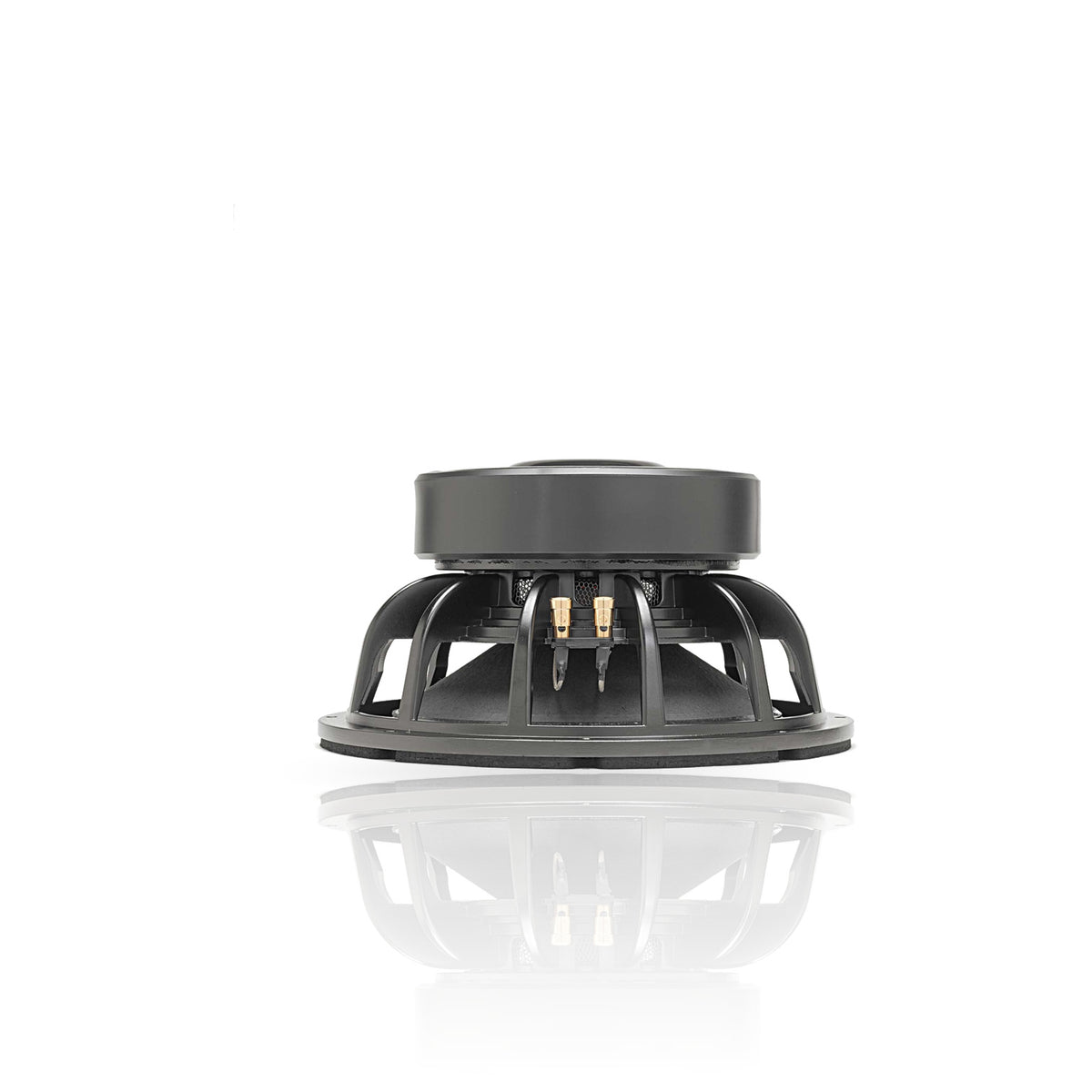

LAB12
Recommended for vented, sealed, and horn loaded, professional audio enclosures as a subwoofer. Also great as an automotive sub.
| Specification | |
| Nominal Basket Diameter | 12", 304.8mm |
| Nominal Impedance* | 6 ohms |
| Power Rating** | |
| Watts | 400W |
| Music Program | 800W |
| Resonance | 22Hz |
| Usable Frequency Range | 25Hz - 0.12kHz |
| Sensitivity*** | 89.2dB |
| Magnet Weight | 160 oz. |
| Gap Height | 0.37", 9.53mm |
| Voice Coil Diameter | 2.5", 63.5mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 22Hz |
| DC Resistance (Re) | 4.29 |
| Coil Inductance (Le) | 1.48mH |
| Mechanical Q (Qms) | 13.32 |
| Electromagnetic Q (Qes) | 0.39 |
| Total Q (Qts) | 0.38 |
| Compliance Equivalent Volume (Vas) | 125.2 liters / 4.42 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 659cc |
| Mechanical Compliance of Suspension (Cms) | 0.35mm/N |
| BL Product (BL) | 15 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 146 grams |
| Efficiency Bandwidth Product (EBP) | 56 |
| Maximum Linear Excursion (Xmax) | 13mm |
| Surface Area of Cone (Sd) | 506.7 cm2 |
| Maximum Mechanical Limit (Xlim) | 22mm |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | 22.7-28.3 liters / 0.8-1 cu.ft. |
| Vented | 45.3-101.9 liters / 1.6-3.6 cu.ft. |
| Driver Volume Displaced | 188.6 cu.in. / 3.09 liters |
| Overall Diameter | 12.32", 312.8mm |
| Baffle Hole Diameter | 10.98", 278.9mm |
| Front Sealing Gasket | Fitted as standard |
| Rear Sealing Gasket | N/A |
| Mounting Holes Diameter | 0.26", 6.6mm |
| Mounting Holes B.C.D. | 11.77", 299mm |
| Depth | 6.44", 164mm |
| Net Weight | 22 lbs, 10 kg |
| Shipping Weight | 23.8 lbs, 10.8 kgs |
| Materials of Construction | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Double stacked 80 oz. ferrite magnets |
| Core Details | Vented and extended core |
| Basket Materials | 12-spoke die-cast aluminum basket |
| Cone Composition | Kevlar-reinforced paper cone |
| Cone Edge Composition | Foam cone edge |
| Dust Cap Composition | Dual inverted dust caps |
Footnotes
* Please consult www.eminence.com for specifications of models with alternative impedances.
** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, nontemperature-controlled environment.

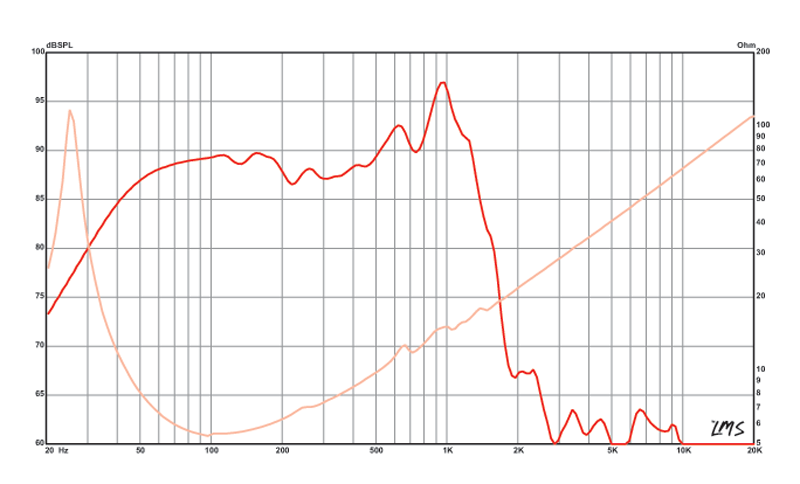

*** The average output across the usable frequency range when applying 1W/1m into the nominal impedance. ie: 2.83 V /8 ohms, 4 V /16 ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).
**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR™ CX 2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
***** Multiple units exceeded published rating evaluated under AES 500 and AES 800 noise sources and test standards while mounted on Eminence's TI-2000 horn in a nontemperature-controlled environment.
****** The average on axis output across the entire usable frequency range when applying 1W/1m into the nominal impedance while mounted on a Community SH 494 horn measured with: LMS (software calibrated) using a 0.25" [6.4mm] supplied microphone mounted 1m from horn mouth, Hafler P1500 Trans-Nova amplifier, 2700 cu.ft. chamber w/fiberglass on all six surfaces (three with custom made wedges). Plane-wave tube response and impedance curves measured with LMS on a 0.75" [19.1mm] diameter tube with adapter to allow for smooth transition to throat diameter and 1W/1m into nominal impedance. Prices and Specifications Subject to Change Without Notice.
