HempDog 12

Multi-platinum, Grammy Award-winning producer/guitarist Pete Anderson wanted to combine the tonal characteristics from two of his favorite Eminence speakers into a single 12" model. The HempDog 12 borrows the warmth from the Cannabis Rex, and the neutral, clear tone from the Legend EM12. "The creation of the HempDog has exceeded my expectations. It has the hi-fidelity I require plus the warmth of hemp, an outstanding combination that covers all genres of music." ? Pete Anderson

Suggested Retail  $124.99
Your Price  $119.99

For continental USA shipments only.

  • Free Shipping
  • Free Tech Support
  • 7-Year Warranty*
*Warranty policy may vary outside the USA.
This table charts the specifications for the HempDog 12 speaker
Speaker Detail
Specification
Nominal Basket Diameter12", 0 mm
Nominal Impedance*8 Ω
Power Rating*
Program PowerN/A
Watts150 W
Resonance69 Hz
Usable Frequency Range80 Hz - 3.8 kHz
Sensitivity*102.3 dB
Magnet Weight80 oz.
Gap Height0.37", 9.5 mm
Voice Coil Diameter2.5", 64 mm
Thiele & Small Parameters
Resonant Frequency (fs)69 Hz
DC Resistance (Re)6.55 Ω
Coil Inductance (Le)0.41m H
Mechanical Q (Qms)10.02
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)74.33 liters / 2.62 cu.ft.
Peak Diaphragm Displacement Volume (Vd)69.3 cc
Mechanical Compliance of Suspension (Cms)0.18 mm/N
BL Product (BL)15.23 T-M
Diaphragm Mass Inc. Airload (MMs)30 grams
Efficiency Bandwidth Product (EBP)191
Maximum Linear Excursion (Xmax)1.27 mm
Surface Area of Cone (Sd)545.4 cm2
Maximum Mechanical Limit (Xlim)0 mm
Mounting Information
Recommended Enclosure Volume
Sealed N/a
Vented N/a
Driver Volume Displaced0.003 cu.ft. / 0.09 liters
Overall Diameter12.38", 314.5 mm
Baffle Hole Diameter11.07", 281.2 mm
Front Sealing GasketYes
Rear Sealing GasketYes
Mounting Holes Diameter0.26", 6.6mm
Mounting Holes B.C.D.11.57", 293.9mm
Depth5.38", 136.7 mm
Net Weight16.3 lbs, 7.39 kg
Shipping Weight18 lbs, 8.16 kgs
Materials of Construction
Coil ConstructionEdge Wound Aluminum
Coil FormerPolyimide former
Magnet CompositionFerrite
Core DetailsVented core

Basket MaterialsDie-cast aluminum basket
Cone CompositionPaper cone
Cone Edge CompositionPaper cone edge
Dust Cap CompositionPaper dust cap
Hide
Footnotes

Multiple units exceed published ratings evaluated under EIA 426A specification while tested in a free-air, non-temperature-controlled environment. Multiple compression drivers exceeded published ratings evaluated under EIA-426A or AES specification while mounted on Eminence’s H290, H290S, or H2EA horn in a non-temperature-controlled environment.

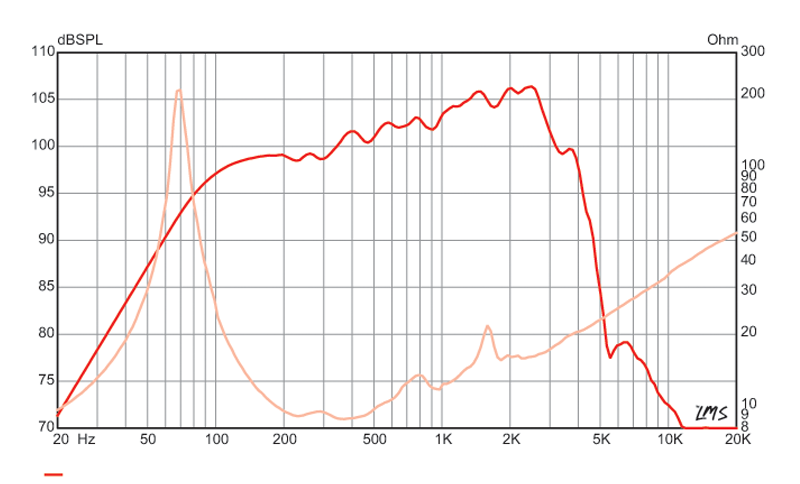

The average output across the usable frequency range when applying 1W/1m into the nominal impedance. i.e: 2.83V/8Ω, 4V/16Ω. Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Yamaha P3500S amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custom-made wedges). Compression drivers were tested using a 2ft x 2ft baffle built into the wall with horn front mounted.

BETA 8CX, 10CX and 12CX are coaxial speakers with tweeter sold separately. The data for these coaxial woofers was calculated with the ASD:1001 driver screwed into the woofer, but not active.

Prices, specifications and product cosmetics are subject to change without notice.
