Pro Audio
Neodymium Series
DELTALITE™ II 2512
Suited for pro audio as a mid/hi or full-range and monitor. Also recommended for bass guitar. Works well in sealed or vented enclosures.
| Specification | |
| Nominal Basket Diameter | 12", 304.8mm |
| Nominal Impedance* | 8 ohms |
| Power Rating** | |
| Watts | 250W |
| Music Program | 500W |
| Resonance | 43.52Hz |
| Usable Frequency Range | 58Hz - 4.3kHz |
| Sensitivity*** | 99.9dB |
| Magnet Weight | 7 oz. |
| Gap Height | 0.27", 6.98mm |
| Voice Coil Diameter | 2.5", 63.5mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 43.52Hz |
| DC Resistance (Re) | 5.17 |
| Coil Inductance (Le) | 0.43mH |
| Mechanical Q (Qms) | 4.17 |
| Electromagnetic Q (Qes) | 0.45 |
| Total Q (Qts) | 0.41 |
| Compliance Equivalent Volume (Vas) | 134.88 liters / 4.76 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 255cc |
| Mechanical Compliance of Suspension (Cms) | 0.36mm/N |
| BL Product (BL) | 10.69 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 36.75 grams |
| Efficiency Bandwidth Product (EBP) | 95.7 |
| Maximum Linear Excursion (Xmax) | 4.9mm |
| Surface Area of Cone (Sd) | 519.5 cm2 |
| Maximum Mechanical Limit (Xlim) | 8.5mm |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | 25.49-42.48 liters / 0.9-1.5 cu.ft. |
| Vented | 32.56-127.4 liters / 1.15-4.5 cu.ft. |
| Driver Volume Displaced | 86.4 cu.in. / 1.42 liters |
| Overall Diameter | 12.38", 314.5mm |
| Baffle Hole Diameter | 11.06", 280.92mm |
| Front Sealing Gasket | Fitted as standard |
| Rear Sealing Gasket | Fitted as standard |
| Mounting Holes Diameter | 0.28", 7.11mm |
| Mounting Holes B.C.D. | 11.62", 295.15mm |
| Depth | 6.06", 153.92mm |
| Net Weight | 5.1 lbs, 2.31 kg |
| Shipping Weight | 6.8 lbs, 3.08 kgs |
| Materials of Construction | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Neodymium magnet |
| Core Details | Vented core |
| Basket Materials | Die-cast aluminum basket/ heatsink |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
Footnotes
* Please consult www.eminence.com for specifications of models with alternative impedances.
** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, nontemperature-controlled environment.

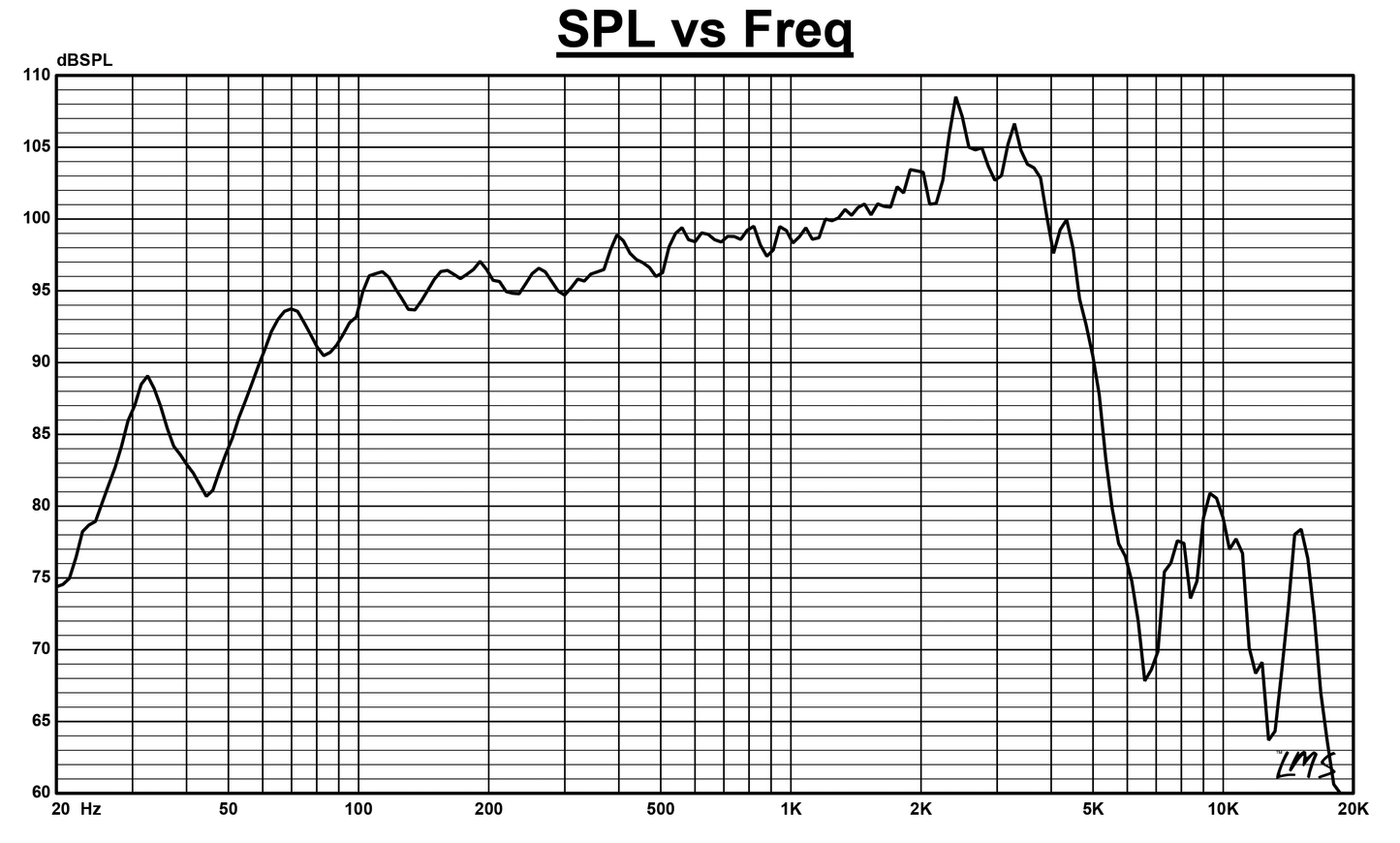

*** The average output across the usable frequency range when applying 1W/1m into the nominal impedance. ie: 2.83 V /8 ohms, 4 V /16 ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).
**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR™ CX 2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
***** Multiple units exceeded published rating evaluated under AES 500 and AES 800 noise sources and test standards while mounted on Eminence's TI-2000 horn in a nontemperature-controlled environment.
****** The average on axis output across the entire usable frequency range when applying 1W/1m into the nominal impedance while mounted on a Community SH 494 horn measured with: LMS (software calibrated) using a 0.25" [6.4mm] supplied microphone mounted 1m from horn mouth, Hafler P1500 Trans-Nova amplifier, 2700 cu.ft. chamber w/fiberglass on all six surfaces (three with custom made wedges). Plane-wave tube response and impedance curves measured with LMS on a 0.75" [19.1mm] diameter tube with adapter to allow for smooth transition to throat diameter and 1W/1m into nominal impedance. Prices and Specifications Subject to Change Without Notice.
