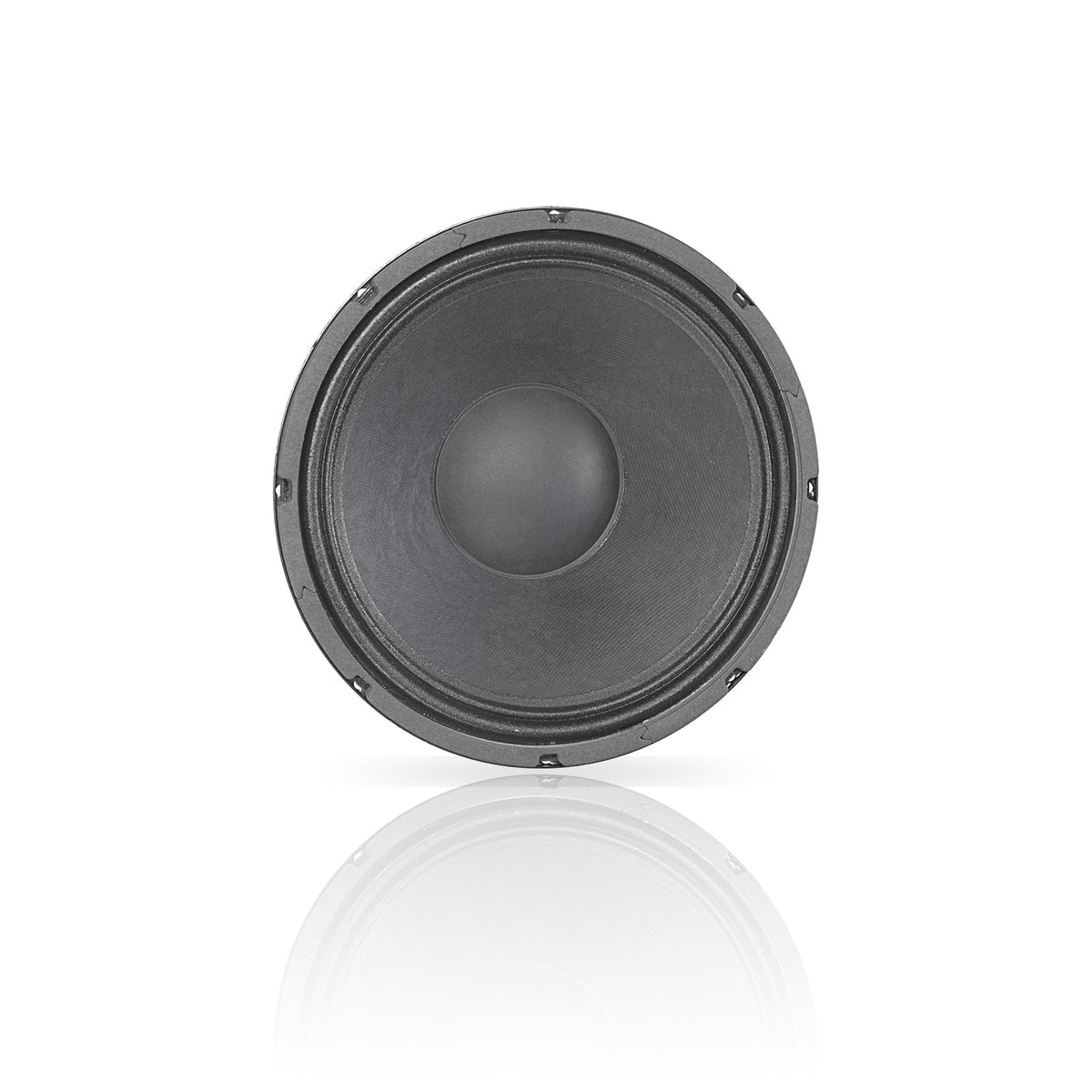

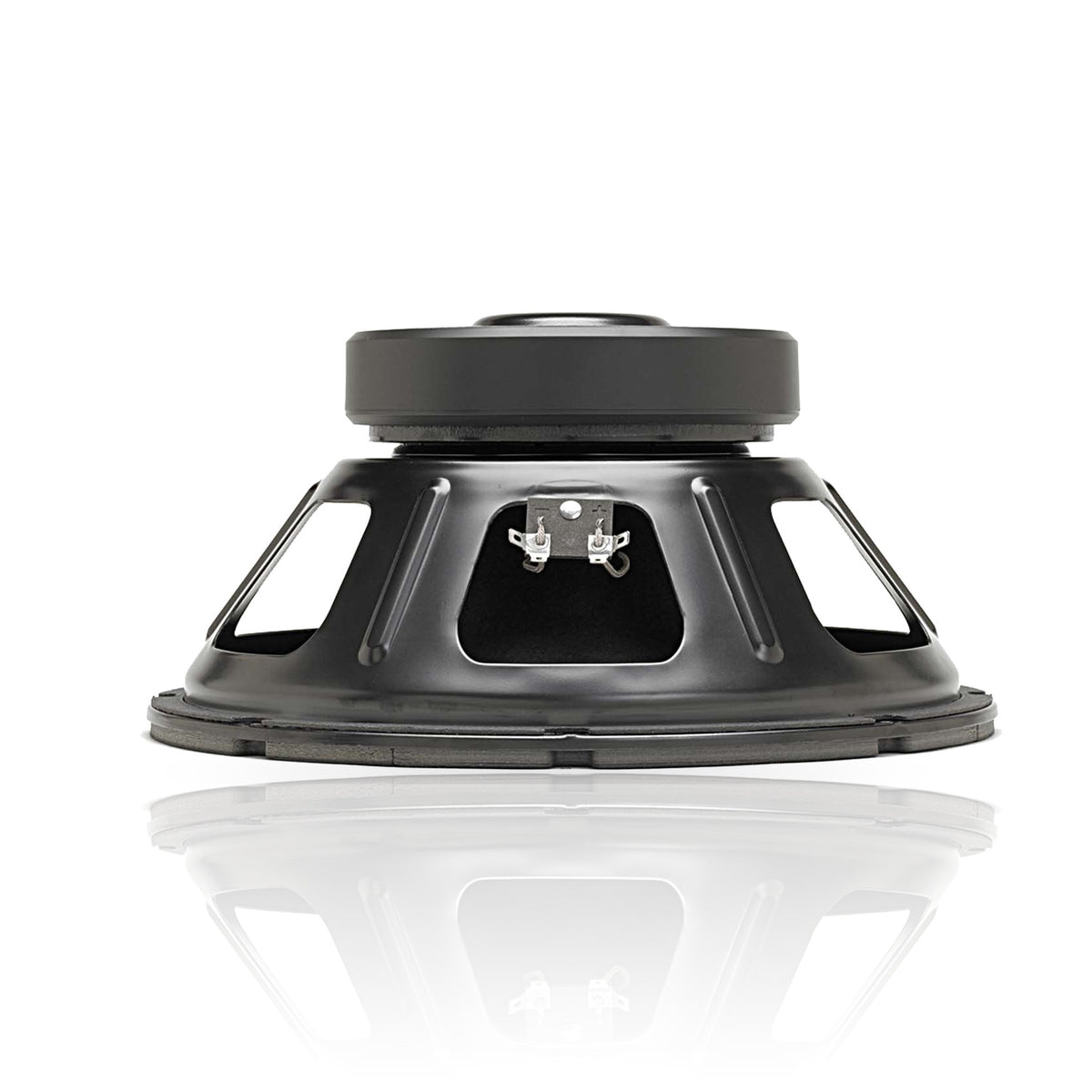

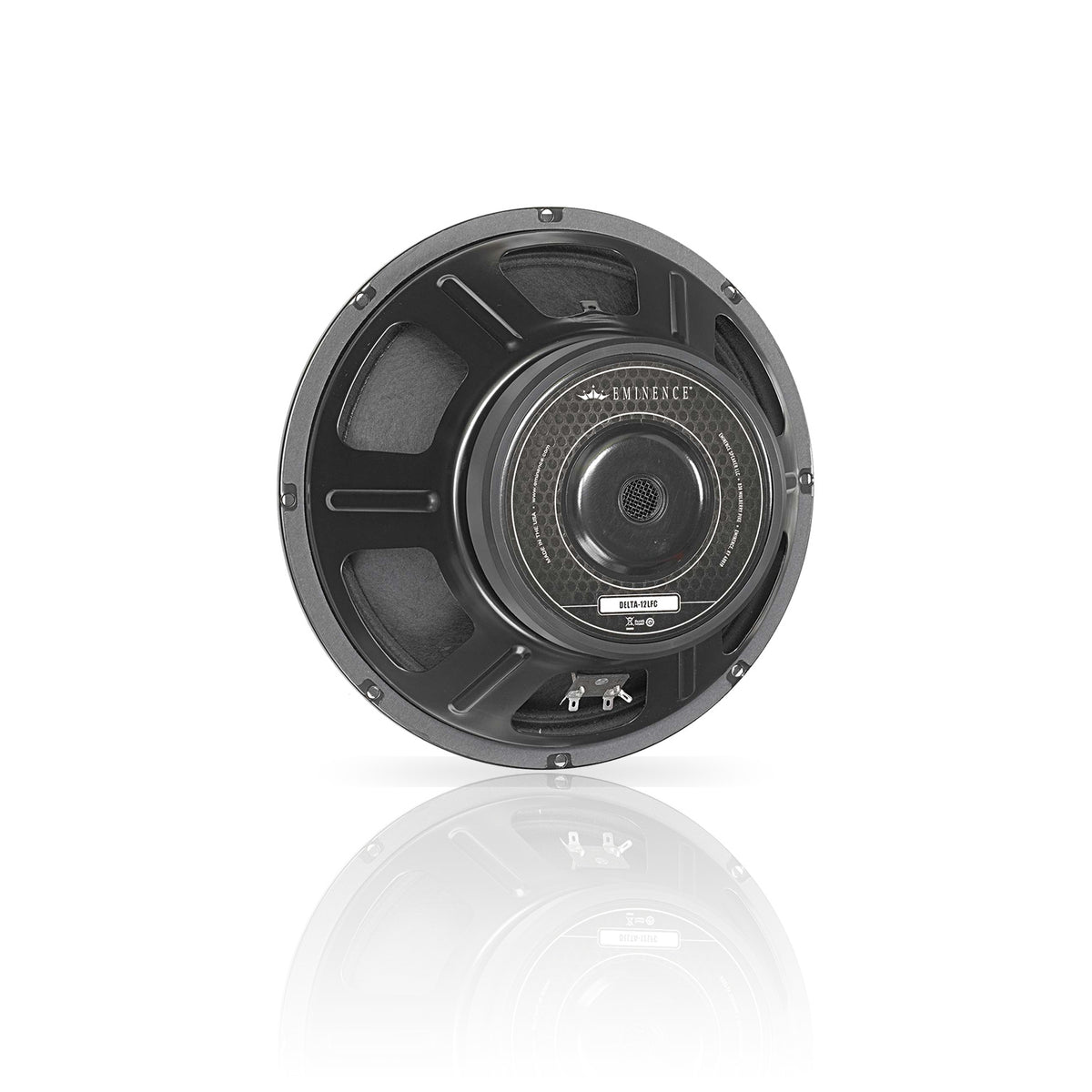

American Standard Series
Low frequency woofer for pro audio mid-bass or floor monitor applications in a sealed enclosure. Also suitable as a woofer in vented, bass guitar or PA enclosures.
|Nominal Basket Diameter||12", 304.8mm|
|Nominal Impedance*||4 ohms|
|Usable Frequency Range||45Hz - 2.3kHz|
|Magnet Weight||56 oz.|
|Gap Height||0.37", 9.53mm|
|Voice Coil Diameter||2.5", 63.5mm|
|Thiele & Small Parameters|
|Resonant Frequency (fs)||52Hz|
|DC Resistance (Re)||3.2|
|Coil Inductance (Le)||0.94mH|
|Mechanical Q (Qms)||8.21|
|Electromagnetic Q (Qes)||0.47|
|Total Q (Qts)||0.44|
|Compliance Equivalent Volume (Vas)||63.7 liters / 2.3 cu.ft.|
|Peak Diaphragm Displacement Volume (Vd)||243cc|
|Mechanical Compliance of Suspension (Cms)||0.17mm/N|
|BL Product (BL)||10.9 T-M|
|Diaphragm Mass Inc. Airload (MMs)||53 grams|
|Efficiency Bandwidth Product (EBP)||111.4|
|Maximum Linear Excursion (Xmax)||4.8mm|
|Surface Area of Cone (Sd)||506.7 cm2|
|Maximum Mechanical Limit (Xlim)||13.5mm|
|Recommended Enclosure Volume|
|Sealed||21-74 liters / 0.7-2.6 cu.ft.|
|Vented||28-110 liters / 1-3.9 cu.ft.|
|Driver Volume Displaced||137.3 cu.in. / 2.25 liters|
|Overall Diameter||12.03", 305.5mm|
|Baffle Hole Diameter||11.07", 281.2mm|
|Front Sealing Gasket||Fitted as standard|
|Rear Sealing Gasket||Fitted as standard|
|Mounting Holes Diameter||0.25", 6.4mm|
|Mounting Holes B.C.D.||11.59", 294.4mm|
|Net Weight||11.8 lbs, 5.4 kg|
|Shipping Weight||14 lbs, 6.4 kgs|
|Materials of Construction|
|Coil Construction||Copper voice coil|
|Coil Former||Kapton former|
|Magnet Composition||Ferrite magnet|
|Core Details||Vented and extended core|
|Basket Materials||Pressed steel basket|
|Cone Composition||Treated paper cone|
|Cone Edge Composition||Cloth cone edge|
|Dust Cap Composition||Solid composition paper dust cap|
* Please consult www.eminence.com for specifications of models with alternative impedances.
** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, nontemperature-controlled environment.

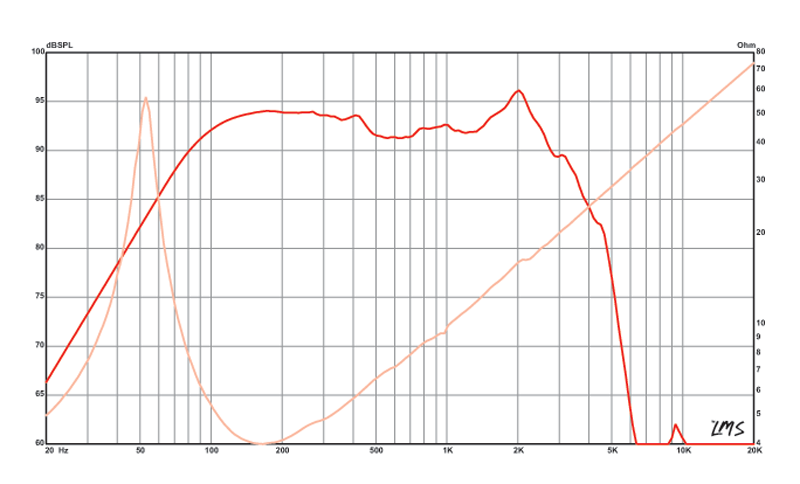

*** The average output across the usable frequency range when applying 1W/1m into the nominal impedance. ie: 2.83 V /8 ohms, 4 V /16 ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2 ft. x 2 ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu. ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).
**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR™ CX 2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
***** Multiple units exceeded published rating evaluated under AES 500 and AES 800 noise sources and test standards while mounted on Eminence's TI-2000 horn in a nontemperature-controlled environment.
****** The average on axis output across the entire usable frequency range when applying 1W/1m into the nominal impedance while mounted on a Community SH 494 horn measured with: LMS (software calibrated) using a 0.25" [6.4mm] supplied microphone mounted 1m from horn mouth, Hafler P1500 Trans-Nova amplifier, 2700 cu.ft. chamber w/fiberglass on all six surfaces (three with custom made wedges). Plane-wave tube response and impedance curves measured with LMS on a 0.75" [19.1mm] diameter tube with adapter to allow for smooth transition to throat diameter and 1W/1m into nominal impedance. Prices and Specifications Subject to Change Without Notice.
