Pro Audio

HF Products & Components

Spec Sheet

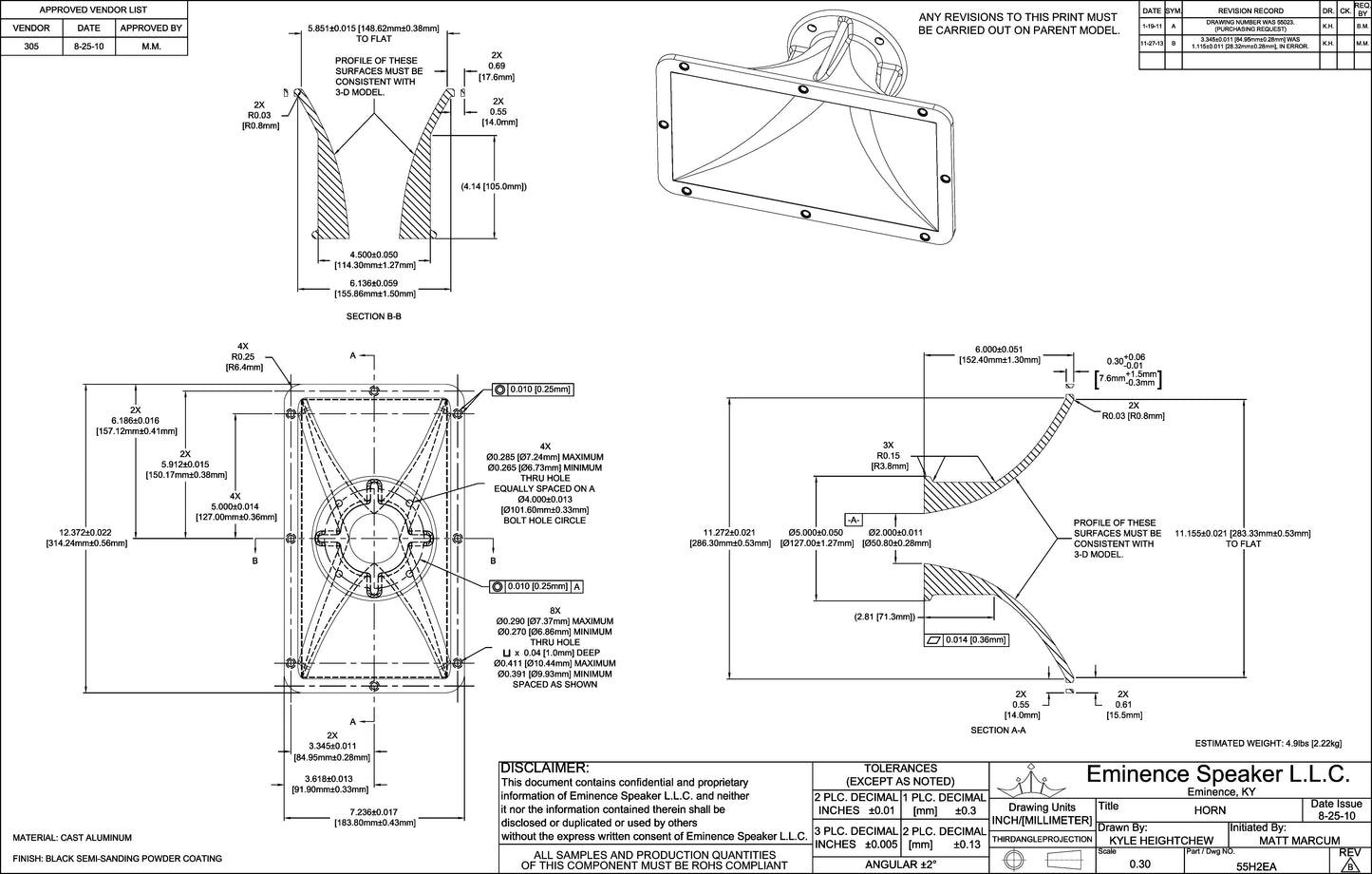

H2EA

Suggested Retail  $64.99
Your Price  $59.99

For continental USA shipments only.

  • Free Shipping
  • Free Tech Support
  • 7-Year Warranty*
*Warranty policy may vary outside the USA.
Horn Flares
Speaker Detail
Specification
TypeExponential
Throat Size2", 50.8mm
Attachment MethodBolt-on
Dispersion60 x 40
Low Rec. Crossover700
WxHxD (in)12.4" x 7.3" x 6.1"
WxHxD (mm)315mm x 185.4mm x 154.9mm
Cut Out11.3 x 6.3", 287 x 160mm
Weight4.9lbs, 2.22g
MaterialAluminum
Hide
Footnotes

* Please consult www.eminence.com for specifications of models with alternative impedances.

** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, non-temperature controlled environment.

*** The average output across the usable frequency range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms, 4V/16ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1w/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25 supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft. X 2ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu.ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).

**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR© CX2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.

***** Multiple units exceeded published rating evaluated under AES 500 and AES 800 noise sources and test standards while mounted on Eminence's TI-2000 horn in a nontemperature-controlled environment.

****** BETA 8CX, 10CX, 12CX and ACOUSTINATOR© CX2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
