Pro Audio

HF Products & Components

Spec Sheet

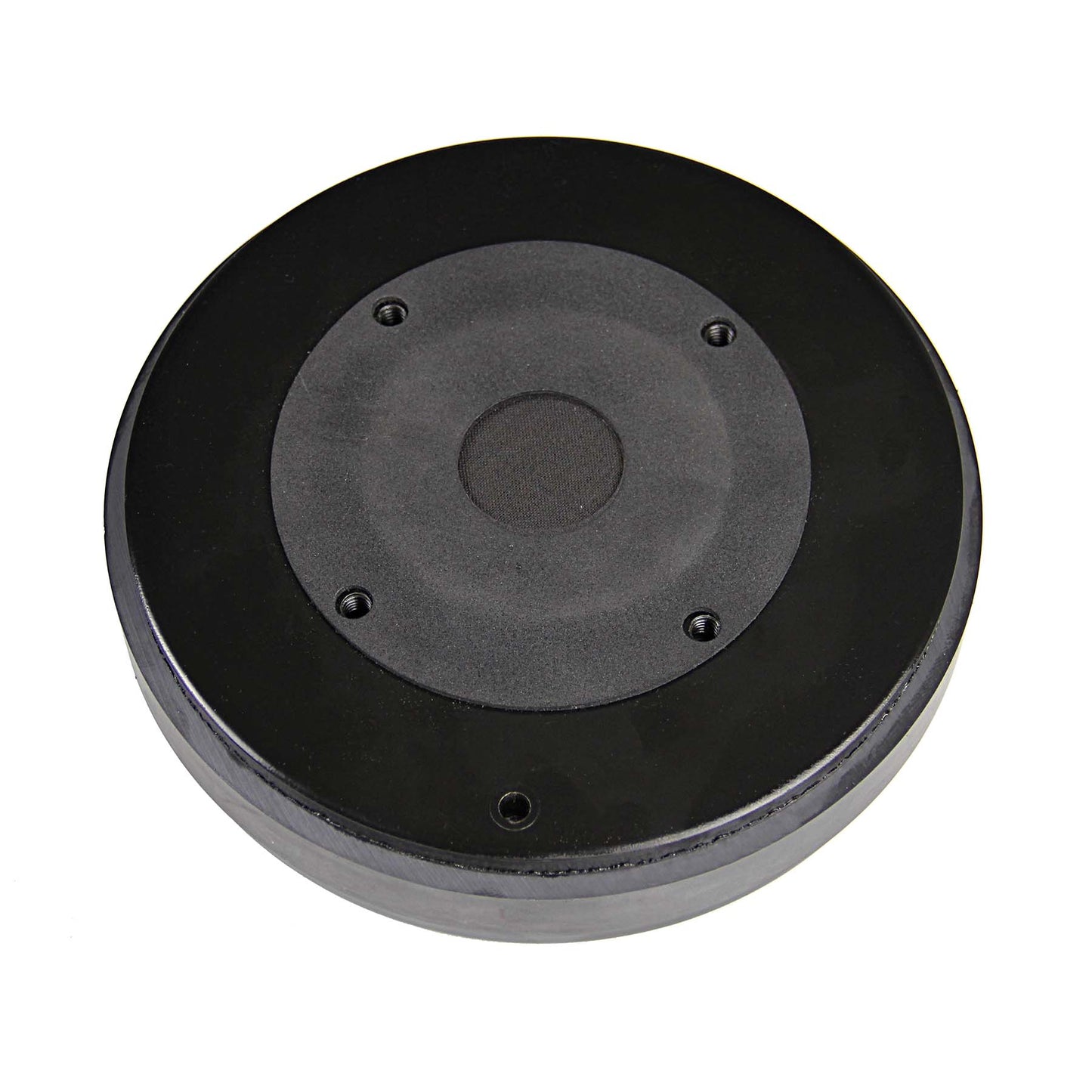

PSD:3014-16

Suggested Retail  $199.99
Your Price  $189.99

For continental USA shipments only.

  • Free Shipping
  • Free Tech Support
  • 7-Year Warranty*
*Warranty policy may vary outside the USA.
High frequency driver specifications
Speaker Detail
Specification
Throat Size1.4", 35.6mm
Nominal Impedance*16Ω
Minimum Impedance13.0 ohm @ 2.8 kHz Ω
Power Rating**100 W (AES)
Resonance0.47kHz
Usable Frequency Range800Hz-20kHz
Recommended Crossover800 Hz / 12 dBkHz
Sensitivity***108.6
Magnet MaterialFerrite
Magnet Weight80oz, 2.27kg
Voice Coil Diameter3" / 76mm
Voice Coil FormerPolyimide
Diaphragm MaterialTitanium w/ geodesic ribs for increased stiffness and break-up control.
DC Resistance (Re)10Ω
Mounting Information
Overall Diameter7.9", 200.7mm
Driver Volume Displaced0.048 cu.ft., 1.36 liters
Depth3.1", 78.7mm
Weight13.7 lbs, 6.2 kg
Mounting ThreadN/A
Mounting Holes Diameter4X 1/4-20
Mounting Holes B.C.D.4 in. 101.6 mm.
Hide
Footnotes

* Please consult www.eminence.com for specifications of models with alternative impedances.

** Multiple units exceed published rating evaluated under AES noise source and test standard while mounted on the H290 or H290S horn in a non-temperature controlled environment.

*** The average on axis output across the usable frequency range when applying 1W/1m into the nominal impedance, i.e. 2.83V/8Ω, 4V/16Ω. Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft x 2ft baffle is built into the wall with horn front mounted | Carver PM-120 amplifier | 2700ft3 chamber with fiberglass on all six surfaces (three with custom-made wedges).
