Spec Sheet

ASD:1001

Suggested Retail  $34.99
Your Price  $29.99

For continental USA shipments only.

  • Free Shipping
  • Free Tech Support
  • 7-Year Warranty*
*Warranty policy may vary outside the USA.
High frequency driver specifications
Speaker Detail
Specification
Throat Size1", 25.4mm
Nominal Impedance*
Minimum Impedance7.7 ohm @ 3.0 kHz Ω
Power Rating**50 W (EIA-426A)
Resonance0.59kHz
Usable Frequency Range2500Hz-20kHz
Recommended Crossover2.5 kHz / 18 dBkHz
Sensitivity***104.4
Magnet MaterialFerrite
Magnet Weight12oz, 0.34kg
Voice Coil Diameter1.3" / 33mm
Voice Coil FormerAluminum
Diaphragm MaterialTitanium
DC Resistance (Re)6.7Ω
Mounting Information
Overall Diameter3.5", 88.9mm
Driver Volume Displaced0.009 cu.ft., 0.26 liters
Depth2.45", 62.2mm
Weight2 lbs, 0.9 kg
Mounting Thread1 3/8 in. 18 ext.
Mounting Holes DiameterN/A
Mounting Holes B.C.D.N/A
Hide
Footnotes

* Please consult www.eminence.com for specifications of models with alternative impedances.

** Multiple units exceed published rating evaluated under AES noise source and test standard while mounted on the H290 or H290S horn in a non-temperature controlled environment.

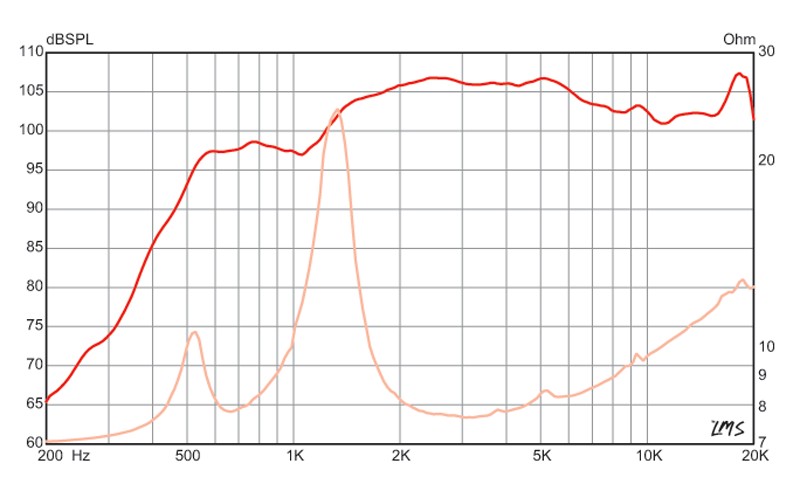

*** The average on axis output across the usable frequency range when applying 1W/1m into the nominal impedance, i.e. 2.83V/8Ω, 4V/16Ω. Eminence response curves are measured under the following conditions: All speakers are tested at 1W/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft x 2ft baffle is built into the wall with horn front mounted | Carver PM-120 amplifier | 2700ft3 chamber with fiberglass on all six surfaces (three with custom-made wedges).
